E12S

$175 Excl. VAT

Tech-forward Mobile Access
E12 caters te the on-the-go lifestyle of modern living by offering users cardless and touchless smartphone-based access via Bluetooth and NFC, which is a more convenient and safer option for users.

Fit for Outdoor Environments
IP65 rating, high UV resistance, and a wide working temperature range from -40C to +60C protect E12 against rain, heat, snow, dust, and dirt.

Designed for Easy Deployment
Supporting communication over Wi-Fi, E12 only requires a power connection for setup. Moreover, with a slim body, it can go to most installation spaces, even a narrow door frame

Answer Doors from Anywhere
When E12 is connected to the Akuvox cloud, residents are able to see and talk to visitors and unlock doors for them whether they’re home or away

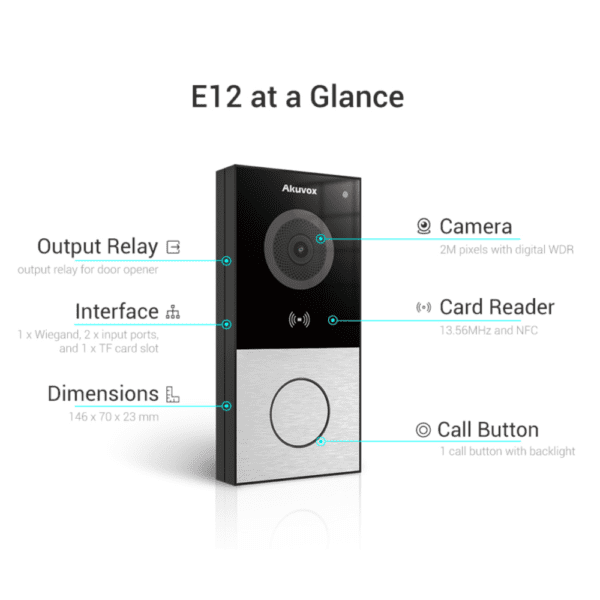

Compact, Stylish and Versatile, Perfect for Every Front Door

E12 is a single-button SIP video door phone for all types of front doors, be it houses, apartments, or condos. Despite a slim body, it boasts many cutting-edge features, such as mobile access and wireless communication.

Physical & Power

  • Body Material: Plastic
  • Camera: 2M pixels, automatic lighting
  • Button: 1 call button with backlight
  • Wiegand port: Support
  • RF card reader: 13.56MHz
  • Light sensor: 1
  • Relays out: 1
  • Inputs: 2
  • Micro SD card slot: 1
  • Microphone: -36dB
  • Speaker: 8Ω / 1.5W
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • BLE: Yes
  • WiFi: IEEE802.11b/g/n, 2.4GHz (E12W Only)
  • Vandal alarm: Yes
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Power: 12V / 1A
  • Water-proof & Dust-proof: IP65
  • Installation: Wall-mounted
  • Size: 146x70x23mm
  • Working Humidity: 10~90%
  • Working Temperature: -40°C ~ +60°C
  • Storage Temperature: -40°C ~ +70°C

Audio

  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ, G.729
  • Broadband audio codec: G.722
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator

Video

  • Sensor: 1/2.7”, CMOS
  • Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
  • Video codec: H.264, H.265
  • Video resolution: up to 1920x1080p
  • Max. image transfer rate: 1080p – 25fps
  • Viewing angle: 123°(H) / 69°(V)
  • White LEDs for picture lighting during dark hours with internal light sensor

Door Entry Feature

  • Relays controlled individually by DTMF tones
  • Camera permanently operational
  • Auto-night mode with LED illumination
  • White balance: auto
  • Minimum illumination: 0.1LUX

Networking & Protocol

  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Configuration backup / restore
  • Entry log export
  • Access table export / import
  • Firmware upgrade
  • System logs (include door access logs)



Application Scenario

  • Apartment/flat intercom with door access control
  • Remote site entry over Internet



Akuvox E12
